Bell Housing & Stand Brackets.

mani fold block

mani fold block

mini fold block

mani fold block

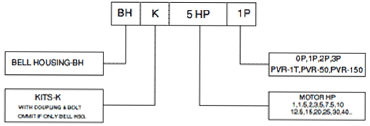

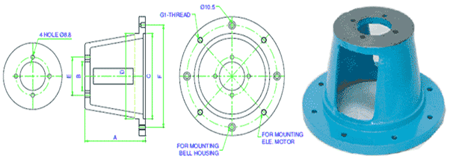

Bell Housing for gear and valve pump

AME	HP	A	B	C	D	E	F	G1	G2	H
71	0.5	75	82.6	110	115	106.2	130	M10	M8	8.5
80L	0.75,1	80	82.6	130	140	106.2	165	M10	M10	8.5
90S/L	1.5,2	100	82.6	130	140	106.2	165	M10	M10	10.5
100L / 112M	3.5	120	82.6	180	180	106.2	215	M10	M12	10.5
100L / 112M	3.5	145	101.6	180	180	145.9	215	M12	M12	10.5
132S/M	7.5,10	170	82.6	230	230	106.2	265	M10	M12	10.5
132S/M	7.5,10	170	101.6	230	230	145.9	265	M12	M12	10.5
132S/M	7.5,10	170	127	230	230	180.8	265	M16	M12	10.5
160M/L-180M/L	12.5,15,20,25,30	200	101.6	250	250	145.9	300	M12	M16	10.5
160M/L-180M/L	12.5,15,20,25,30	200	127	250	250	180.8	300	M16	M16	10.5
200 L	40	210	101.6	300	300	145.9	350	M12	M16	10.5
200 L	40	210	127	300	300	180.8	350	M12	M16	10.5

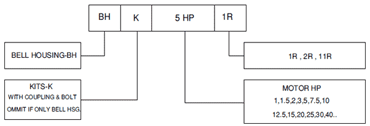

Bell Housing For Piston Pumps.

MOTOR HP.	A	B	C	D	E	F	G1
1,1.5,2 HP	130	60	130	130	80	165	M10
	120
3,5 HP	145	60	180	180	80	216	M12
	122
7.5,10 HP	170	60	230	230	80	265	M12
	145
12.5,15,20,25,30 HP	200	60	250	250	80	300	M16
40 HP	210	60	300	300	80	350	M16

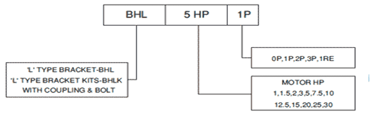

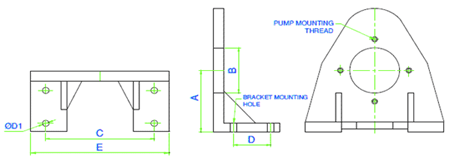

stabd bracket l type

MOTOR	PUMP	A	B	C	D	E	D1
0.5	1P	71	82.6	150	50	182	11
0.75,1	1P	80	82.6	150	50	182	11
1.5,2	1P,1R	90	82.6/60	150	50	182	11
3	1P,2P,3P,1R	100	82.6/101.6	190	60	228	11
			127/60
5	1P,2P,3P,1R	112	82.6/101.6	190	60	228	11
			127/60
7.5,10	1P,2P,1R	132	82.6/101.6	230	60	272	13
			60
7.5,10	3P	132	127	230	60	272	13
12.5,15,20	1P,2P,3P,1R	160	82.6/101.6	270	80	322	13
			127/60
25,30	1P,2P,3P,1R	180	82.6/101.6	270	80	322	13
			127/60

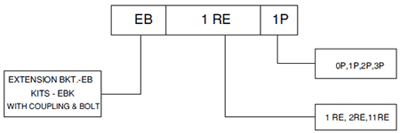

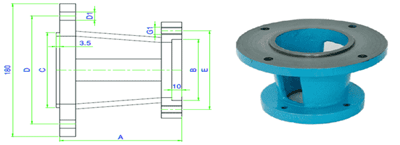

Extension Bracket for Pumps

RACKET	PUMP	A	B	C	D	E	G1	D1
EB 1RE	1P	120	82.6	101.6	156	106.2	M10	10.5
EB 1RE	1P	87	82.6	101.6	156	106.2	M10	10.5
EB 1RE	2P	120	101.6	101.6	156	145.9	M12	10.5
EB 1RE	2P	96	101.6	101.6	156	145.9	M12	10.5
EB 1RE	3P	130	127	101.6	156	180.8	M16	10.5
EB 11RE	2P	130	101.6	113.8	156	145.9	M12	18
EB 11RE	3P	130	127	113.8	156	180.8	M16	18
