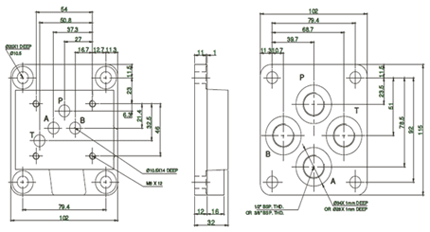

Manifold Block Sub Plates

Used for Space saving connections of a number of directional control valves to a common delivery and return line.
Sizes Available - NG 06, NG 10, NG 16, NG 22.
Connection : 1/8" BSP to 2" BSP
Custom limit circuit is also available.
Multistation up to 10 Station.
Suitable for Any type of Mounting Position.
ISO, CETOP or DIN24340 Hole pattern

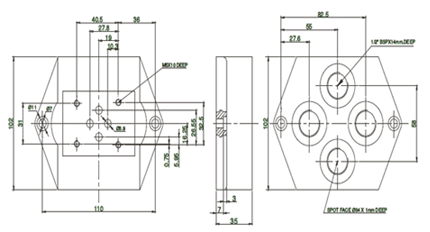

Sub Plate

Sub Plates for any type of Valve mounting like Direction Control Valve, Pressure relief valves, etc.
Used in high pressure standard mountings & dimension.
Standard & Extra Ordinary Threading.
Standard connection 1/4", 3/8", 1/2", 3/4", 1", 1.1/4", 2.1/2" BSP
Other Special Valve Plates.
Always in Ex-Stock.
