Pilot Operated Check Valve

Allow Free flow in one direction And Block flow in thecounter direction to maintain pressure the oil is allowed to flow in the counter direction when x port is connected.

Description

Seat type Valve
internal drain- construction
threaded mounting type ,sub plate type.
three size - 10 , 20 , 30 size
cracking pressure - 0.5 , 1.5 , 3 , 5 bar

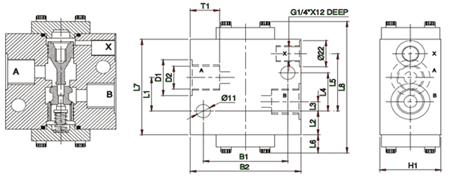

SIZE	Mass	B1	B2	D1	D2	H1	L1	L2	L3	L4	L5	L6	L7	L8	T1
NG	Kgs	B1	B2	D1	D2	H1	L1	L2	L3	L4	L5	L6	L7	L8	T1
6	2.5	66.5	85	22	G 1/4"	47	27.5	18.5	10.5	33.5	49	18	80	116	12
10	2.4	66.5	85	30	G 1/2"	47	27.5	18.5	10.5	33.5	49	18	80	116	14
16	4	79.5	100	36	G 3/4"	57	36.7	17.3	13.5	50.5	67.7	20	95	135	16
20	4	79.5	100	44	G 1"	57	36.7	17.3	13.5	50.5	67.7	20	95	135	18
25	8.1	97	120	54	G 11/4"	75	54.5	15.5	20.5	73.5	89.5	29	115	173	20
30	8.1	97	120	60	G 11/2"	75	54.5	15.5	20.5	73.5	89.5	29	115	173	22
